Best Surveillance Camera Parameters: 9 Selection Parameters for 2026
Table of Contents
The best surveillance camera is never the loudest marketing number. It is the camera whose parameters match your site: resolution, sensor size, night vision, compression, AI analytics, storage, ingress protection, coverage, integration and power. Buyers usually discover this at night. The 4K unit cannot read a plate. The IP66 camera floods in the first storm. The recorder runs out of days before the month ends. Read this alongside our security camera guide and our megapixel IP camera guide, and you will compare any two quotes on the same ten numbers.
This surveillance camera guide ranks nothing and lists no third-party "best of" tables. It walks nine selection parameters and gives a typical range for each. It maps them to real camera types: bullet, dome, PTZ and full-color units. Consider it a surveillance system buying guide built around numbers you can verify. Every spec claim below is factory-verified or marked as a typical range.
Keep reading for more!
The Snapshot
- Sensor size beats megapixels at night: a 5MP camera with a 1/1.8-inch sensor typically outperforms an 8MP camera with a 1/2.7-inch sensor in low light, because more light per pixel beats more pixels.
- Full-color night vision with an F1.0 lens records usable color in zero light, where IR cameras deliver grayscale that cannot describe clothing or vehicle color in an incident report.
- H.265+ compression typically halves storage and bandwidth versus H.264 at the same image quality, which changes every drive and network budget below.
- Ingress protection is a survival spec: outdoor cameras should carry IP66 or IP67, and exposed public areas need IK10 vandal resistance, not consumer IP65.
- ONVIF conformance keeps the system open: a Profile S and Profile T camera joins existing NVRs and VMS platforms without a brand lock-in.
How to Judge a Surveillance Camera Spec Sheet
Manufacturers print the numbers that sell. The trick is knowing which number answers which question. The table below is the filter we apply to every surveillance camera we test before it enters our own production line.
| Spec sheet number | What it actually tells you | Where buyers go wrong |
|---|---|---|
| Megapixels | Pixel count, not image quality | Chasing 4K on a small sensor that fails at night |
| Sensor format | How much light each pixel receives | Ignoring it, then wondering why night footage is noise |
| F-stop and lux | Lens speed and low-light rating | Trusting 0.001 lux claims on small sensors |
| Codec | Storage and bandwidth cost per day | Buying H.264 and paying for it on the drive shelf for years |
| IP and IK rating | Weather and impact survival | Mounting IP65 outdoors and replacing units yearly |
| ONVIF | Whether it joins your existing system | Buying a locked camera that needs its own app and recorder |
← swipe to scroll →
Read the table bottom to top and you get a buying order: integration first, survival second, storage third, then night performance and resolution. That order is the whole argument of this guide.
Parameter 1: Resolution and Sensor Size

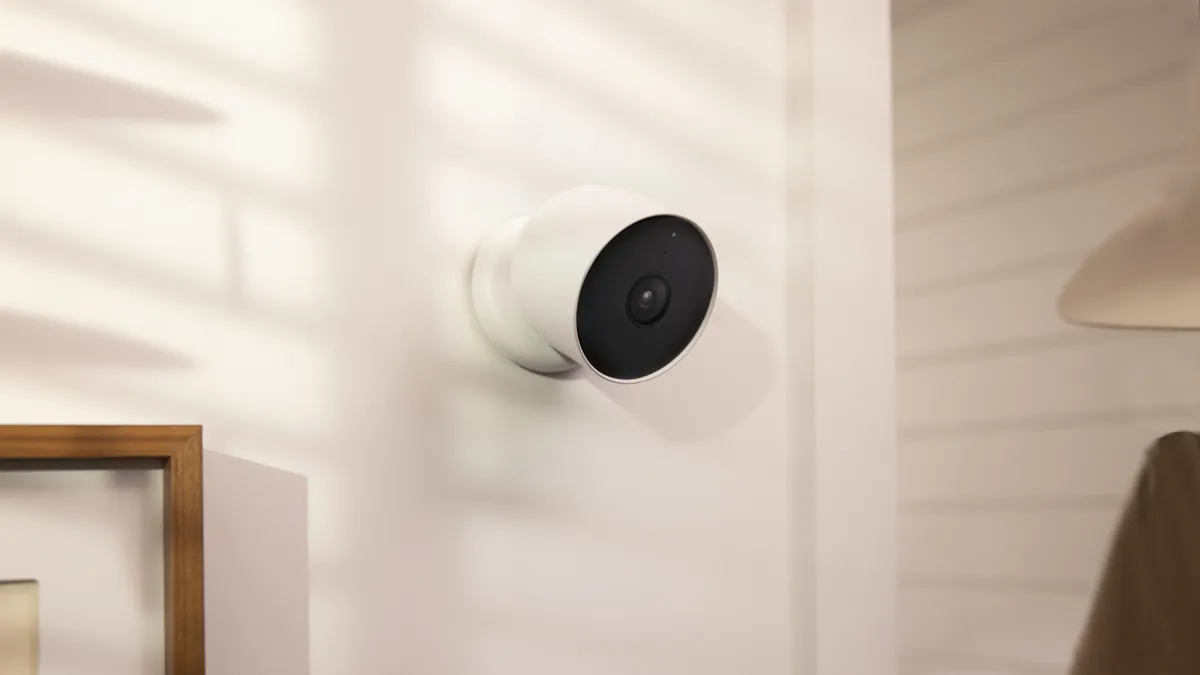

What it means: Resolution is the pixel count, usually written in megapixels. Sensor size is the physical area of the light-capturing chip behind the lens. A 5MP camera (2880×1620) with a 1/1.8-inch sensor is the current balance point for full-color night vision. It packs enough pixels for identification, and enough light per pixel to keep color after dark.
Why it matters: The two numbers fight each other. Cram 8MP onto a 1/2.7-inch sensor and each pixel gets less light, so night footage turns to noise. A 5MP camera on a larger 1/1.8-inch sensor typically captures roughly twice the light per pixel. It records usable color where the 8MP unit switches to black and white. Resolution should be chosen for the smallest detail you must identify at the farthest distance, not for the biggest number on the box.
| Resolution | Typical sensor pairing | Typical use | Low-light note |
|---|---|---|---|
| 2MP (1920×1080) | 1/2.8-inch | Entry-level indoor | Grayscale after dusk |
| 4MP (2560×1440) | 1/2.7-inch | General indoor and covered outdoor | Color to early dusk |
| 5MP (2880×1620) | 1/2.7-inch to 1/1.8-inch | Full-color night vision standard | Color in zero light with F1.0 |
| 8MP (3840×2160) | 1/2.5-inch to 1/1.8-inch | Wide daylight scenes | Struggles in low light on small sensors |
← swipe to scroll →
Selection tip: For wholesale lines, treat 5MP with a 1/1.8-inch sensor as the default surveillance camera resolution for 2026. Match megapixels to the scene, not the marketing. The megapixel IP camera guide breaks this math down per camera type.
Parameter 2: Night Vision and Full-Color Imaging
What it means: Night vision comes in two families. IR cameras light the scene with 850 nm LEDs and record grayscale. Full-color cameras use an F1.0 aperture, a large sensor and a built-in white-light fill, so they record color continuously in zero light.
Why it matters: An incident report needs descriptions: jacket color, vehicle color, direction of travel. Grayscale footage cannot provide them. Full-color night vision typically reaches 20-30 m on a fixed bullet and beyond on PTZ models, and the white light doubles as a visible deterrent.
| Technology | Typical night range | Image in darkness | Evidence value |
|---|---|---|---|
| IR 850 nm | 30-60 m | Grayscale with LED glow | Shape and movement only |
| IR 940 nm | 15-30 m | Invisible, grayscale | Covert but shorter range |
| Full-color F1.0 fixed | 20-30 m | Color with white-light fill | Clothing and vehicle color |
| Full-color PTZ | 50-100 m | Color at distance | Identification at range |
← swipe to scroll →
Selection tip: For any site with night activity, full-color should be the default and IR the fallback. The full-color night vision cameras guide compares the two families in detail.
Parameter 3: Compression, Bandwidth and Bitrate
What it means: The codec decides how many megabytes each camera writes per day. H.264 is the older baseline. H.265 is roughly twice as efficient, and H.265+ adds smart encoding that trims static scenes further. Bitrate is the live version of the same number.
Why it matters: Storage and network are bought in advance. A 4MP camera at 15 fps typically writes 18-25 GB per day with H.264. The same camera lands at 9-13 GB with H.265, and 6-10 GB with H.265+ on a mixed scene. Over a 16-camera system, the codec choice decides whether you buy one drive or three, and whether a 100 Mbps switch copes.
| Codec | Typical bitrate (4MP, 15 fps) | Typical storage per day | Best for |
|---|---|---|---|
| H.264 | 4-6 Mbps | 18-25 GB | Legacy recorders |
| H.265 | 2-3 Mbps | 9-13 GB | Balanced IP systems |
| H.265+ | 1.5-3 Mbps | 6-10 GB | 24/7 multi-camera sites |
← swipe to scroll →
Selection tip: Ask for the codec in writing, not just the megapixel count. A "5MP H.265+ camera" is a storage budget you can plan. A "5MP camera" is a surprise that arrives with the first hard drive bill.
Parameter 4: AI Analytics and Motion Detection
What it means: Naive motion detection triggers on any pixel change: shadows, headlights, insects, rain. On-camera AI classifies events by what they are: person, vehicle or animal. The analytics run at the edge, so there is no monthly cloud fee and no dependence on a central server.
Why it matters: A busy site can generate hundreds of false alerts a day. Staff learn to ignore every one, and the system becomes decoration. AI classification typically cuts false alerts by 80-95% versus pixel-diff motion. Draw exclusion zones around busy streets so the system watches only your property line.
- Person and vehicle classification filters events by type before they reach your phone.
- Intrusion lines and zones trigger only when a person or vehicle crosses a boundary.
- Face and plate capture suits gates and parking entries; ANPR models read plates at typical road speeds.
- People counting and heat mapping turn security cameras into footfall sensors for retail.
- Tamper alarms report covering, defocus or disconnect within seconds.
Selection tip: Ask the supplier for a false-alarm rate on a realistic scene, not a brochure. A classifier that triggers on headlights 200 times a night trains staff to ignore every alert.
Parameter 5: Recording and Storage Architecture
What it means: Storage architecture decides how long footage survives and whether it survives the theft of the recorder. The options, in order of capability:
| Architecture | Typical best for | Retention example (4 cameras, 4MP, H.265+) |
|---|---|---|
| MicroSD in camera | Small shops, single units | 256 GB ≈ 20-30 days |
| DVR (coax) | Existing AHD or analog sites | 4TB ≈ 30-40 days continuous |
| NVR (IP) | New builds and mixed sites | 4TB ≈ 35-45 days continuous |
| NVR with RAID | Retail chains, high-value sites | Redundant and expandable |
← swipe to scroll →
Why it matters: Continuous recording keeps the 10 seconds before an event: the approach, the face, the plate. Event-only systems routinely miss exactly the frames an investigator needs. For business sites, continuous recording on a hard-drive recorder is the baseline.
Selection tip: Size the drive for the retention window your insurance or regulator demands, then add one more drive of headroom. Storage is the cheapest insurance in the system.
Parameter 6: Ingress Protection, Housing and Vandal Resistance
What it means: The IP code rates dust and water resistance. The IK code rates impact resistance. A commercial outdoor surveillance camera typically needs IP66 or IP67, and an exposed public location needs IK10 (5 joule impact).
Why it matters: Cameras live where people do: loading docks, eaves, fence lines, corridors. Consumer IP65 units die in the first storm or the first cart strike. The housing is the first line of defense, and it costs little to buy right. Housing shape also signals intent: a dome reads as monitored, a bullet signals a perimeter.
- IP66-IP67 for outdoor mounting: dust-tight and protected against powerful water jets, up to immersion.
- IK10 for corridors, elevators and public areas where vandal-resistant domes are the standard.
- Operating range of -20°C to +55°C for outdoor units; solar sites add battery chemistry limits.
- Surge protection on PoE ports prevents lightning-adjacent failures that kill unprotected cameras.
Selection tip: Match the housing to the environment, not the price list. An IK10 dome in a corridor, an IP67 bullet on a fence line, and never a consumer unit on an exposed roof edge.
Parameter 7: Coverage, Lens Focal Length and Field of View
What it means: Focal length sets the field of view. A 2.8 mm lens sees roughly 100° horizontally but spreads its pixels thin. A 6 mm lens sees about 50° and packs roughly twice the pixels per degree, so it identifies people at longer distance.
Why it matters: Coverage is lens math, not camera count. One well-placed PTZ with 25× optical zoom can cover a yard that would need three fixed cameras, and read a plate at 100 m. Site shape drives the choice: long corridors want narrow lenses at each end, open floors want wide or panoramic views.
| Focal length | Typical horizontal FOV (5MP) | Typical identify distance | Best for |
|---|---|---|---|
| 2.8 mm | ~100° | 5-8 m | Entrances, offices, wide rooms |
| 3.6 mm | ~85° | 8-12 m | Aisles, counters, doorways |
| 6 mm | ~50° | 12-20 m | Corridors, gates, perimeters |
| 2.8-12 mm varifocal | Adjustable | 5-40 m | Sites where the installer tunes on site |
← swipe to scroll →
Selection tip: Buy varifocal for outdoor runs and fixed lenses for repeatable indoor mounts. Send the site distances to the supplier; a lens chosen for the wrong distance is a camera that records the wrong thing.
Parameter 8: Integration, ONVIF and Platform Compatibility
What it means: ONVIF is the interoperability standard that lets a camera join conformant NVRs and VMS platforms regardless of brand. Profile S covers streaming; Profile T adds advanced streaming and analytics. Free P2P remote access covers the phone-viewing case without port forwarding.
Why it matters: A camera that needs its own app, its own recorder and its own cabling scheme is a locked system. A locked system is a recurring cost, not a saving. Four checks matter before buying: ONVIF Profile S and Profile T, five-minute setup in the free app, RTSP for third-party platforms, and open recorder support. Most integrators reject cameras that cannot join the existing VMS in minutes.
Selection tip: Write the integration requirement into the quote. "ONVIF conformant, H.265, free P2P" is a line you can test in an afternoon. "Works with our system" is a promise that disappears after payment.
Parameter 9: Power, Scalability and Total Cost of Ownership
What it means: Power options decide where a camera can live. PoE (Power over Ethernet) feeds and networks one cable. DC 12V suits short indoor runs. Solar plus 4G suits sites with no power and no cabling at all.
Why it matters: A typical IP camera draws 3-7 W, so a PoE switch with a 30 W per-port budget covers most units with headroom. Scalability works the same way: an 8-channel NVR that upgrades to 16, expandable drive bays, and new cameras that join the same app. The five-year cost usually favors local storage with free P2P over monthly cloud plans.
| Power option | Typical use | Notes |
|---|---|---|
| PoE (802.3af/at) | New runs, outdoor IP cameras | One cable for power and data; 30 W per port typical |
| DC 12V | Indoor runs, existing cabling | Simple and cheap; needs a regulated supply |
| Solar plus 4G | Remote yards, construction sites | Off-grid, event-based recording to save battery |
← swipe to scroll →
Selection tip: Total cost of ownership over five years: hardware, installation, drives, maintenance and power. A camera that saves $20 at purchase but adds a drive failure or a locked app costs more by year two.
Surveillance Camera Types by Site Scenario
The nine parameters converge on a camera type. Match the type to the risk, then confirm the parameters. Our product lines cover the three main families: bullet cameras for perimeters, dome cameras for interiors, and PTZ cameras for large open areas.
| Camera type | Typical best for | Key parameter priorities |
|---|---|---|
| Bullet | Yards, fence lines, long drives | IP67, 6-12 mm lens, full-color night vision, 30-80 m throw |
| Dome | Retail, offices, corridors | IK10 housing, 2.8-3.6 mm wide angle, discreet look |
| PTZ | Parking lots, warehouses, perimeters | 25-36× zoom, full-color or strong IR, auto-tracking, IP66 |
| Full-color bullet | Dark lots and entries | F1.0 lens, white-light fill, color in zero light |
| Solar plus 4G | Remote sites with no power | Off-grid, event recording, 4G uplink |
| IP kit | Multi-camera sites, quick install | Matched NVR, H.265+, ONVIF, one app |
← swipe to scroll →
Each row pairs a camera type with the parameters that matter most for its job. A bullet camera earns its cost with reach and weather survival. A dome earns its cost with impact resistance and discretion. A PTZ earns its cost with zoom and active coverage. The scenario table is a starting point, not a substitute for a site survey.
Surveillance Camera Questions Buyers Ask
What is the best surveillance camera resolution for 2026?
5MP (2880×1620) with a 1/1.8-inch sensor is the current balance point. It gives enough detail for identification, strong low-light color, and roughly half the storage of 8MP with H.265+. Choose 8MP only where wide daylight scenes need maximum detail.
How many megapixels do I need to read a license plate?
Megapixels alone do not decide it. Pixels per degree do. A 6 mm lens on a 4MP or 5MP camera typically reads a plate at 15-25 m. A PTZ with 25× optical zoom reaches much further. ANPR cameras add plate capture at typical road speeds for gates.
What does IP66 mean on a surveillance camera?
IP66 means dust-tight and protected against powerful water jets. IP67 adds temporary immersion. For outdoor mounting, IP66 or IP67 is the survival baseline; IP65 is a consumer-grade rating that fails early on exposed sites.
Are full-color night vision cameras worth the extra cost?
Yes for any site with night activity. Full-color footage identifies jacket color, vehicle color and faces that IR grayscale cannot. The white-light fill also deters. The typical premium over IR-only models is 15-30%.
What is a good bitrate for a surveillance camera?
With H.265+, a 4MP camera at 15 fps typically runs 1.5-3 Mbps on a mixed scene, or 6-10 GB per day. With H.264 the same camera roughly doubles both numbers. Check the codec before you size the switch and the drive.
Do surveillance cameras need a subscription?
No. A no-subscription system records to local storage with free P2P remote access, and the free app provides live view and playback from any phone. Cloud plans add cost, not capability, for most sites.
What is ONVIF and why does it matter?
ONVIF is the interoperability standard for IP cameras. An ONVIF-conformant camera joins conformant NVRs and VMS platforms regardless of brand. Profile S covers streaming; Profile T adds advanced streaming and analytics.
Can solar powered surveillance cameras record all night?
Solar cameras run on battery, so the recording schedule matters. Typical units record motion events and enter standby, and a correctly sized panel plus battery keeps them alive through the night. Full-color night vision on solar units still delivers color, but coverage is event-based.
What is the best surveillance camera type for a large yard?
A PTZ with strong optical zoom plus full-color bullets covers the typical yard best. The PTZ follows activity and reads plates at distance. The bullets keep the whole perimeter in color. Both need IP66+ housings and ONVIF conformance.
The Bottom Line
"Best surveillance camera" is a parameter question, not a brand question. Work the nine parameters against your site: resolution and sensor size, full-color night vision, compression, AI analytics, storage, ingress protection, coverage, integration and power. The right camera type falls out of the scenario table. Bullets cover perimeters, domes cover interiors, PTZ covers yards, and solar plus 4G covers remote sites.
